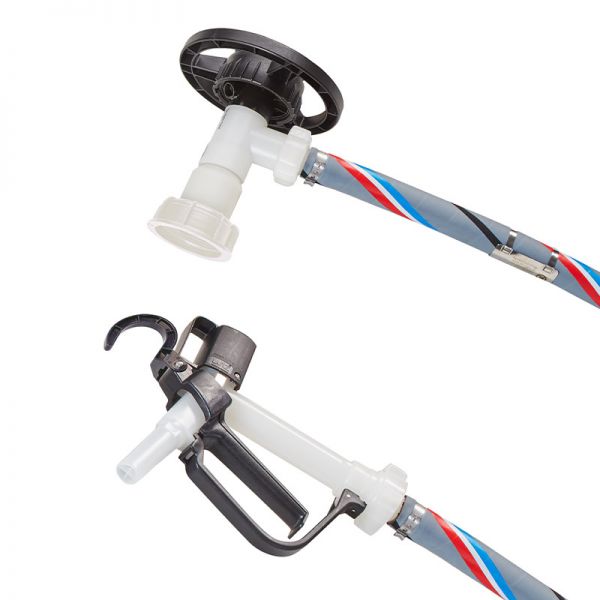

Pump Set B200 PVDF
for concentrated acids and alkalis
- Order number: 0205-291
- Maße (mm): upon request
- Info: not suitable for flammable liquids
Design: without leakage detection
Seal type: mechanical seal (GLRD)
Description:
The horizontal Pump Set is suitable for emptying highly aggressive, aqueous to slightly viscous media from IBC containers or tanks and is the perfect alternative to the vertical Drum Pumps.
Perfectly suited for the discharge of concentrated acids and alkalis.
- Optionally with leakage detection (Safety Box)
- Horizontal connection at the bottom of the container
Features & Advantages
- Optionally with electric or compressed air drive
- Low loss of medium when disconnected
- Simple installation
- Easy to dismantle
- Small footprint
- Automatic emergency stop function of the motor in case of leakage detection
| Suitable media: | Bromsäure, Dimethylphthalat, Fluorwasserstoffsäure, Salpetersäure, Schwefelsäure, Kaliumbromat |
| Pump station material (material): | PVDF (polyvinylidene fluoride) |
| Impeller (material): | ETFE (ethylene-tetrafluorethylene copolymer) |
| Static seal (material): | FPM (fluororubber) |
| Mechanical seal (material): | Carbon, SiC, FPM, HC-4 (2.4610) |
| Bearing (material): | ETFE / PTFE |
| Drive shaft (material): | Hastelloy C (2.4610) |
| Delivery rate (up to max. l/min)*: | 216 |
| Delivery head (up to max. mWS)*: | 16 |
| Fluid temperature (max °C): | 100 |
| density (up to kg/dm³): | 2.8 |
| Viscosity (up to mPas): | 1000 |
| Conveyor wheel shape / drive type: | Axial-flow rotor |
| Seal type: | Mechanical seal (MS) |
| Schlauchlänge (mm): | 2000 |
| Version: | ohne Leckageerkennung |
* The maximum flow rate is a value determined by means of a test bench and measured with water at a medium temperature of approx. 20 °C. The measurement is carried out at the pressure joint of the pump, without hose, nozzle or flow meter. The achievable flow rate in use is lower and depends on the individual application, the liquid properties and the configuration of the pump. The max. delivery head also depends on the pump design, motor and fluid. The viscosity values are determined with oil. ** Test assembly: Medium water / diesel, flow in preferred direction, settling section 0.2 m upstream and downstream of flow meter
