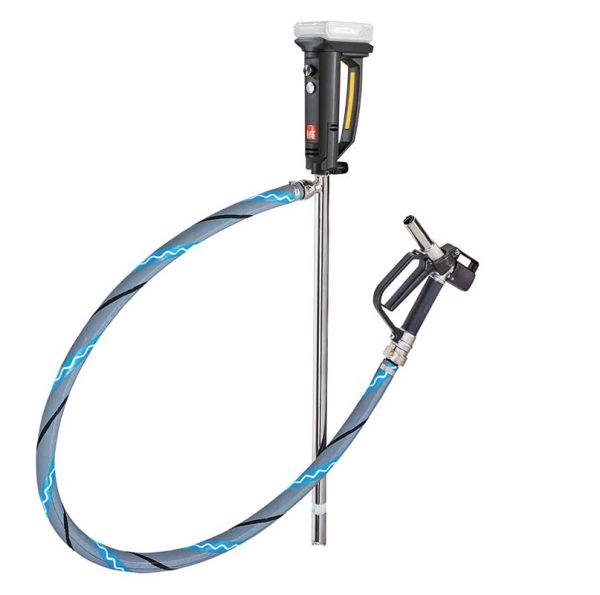

Battery Pump Set - B2 Battery Niro

for liquid lubricants and cleaning agents

Immersion depth:


Preis anfragen

Mit * gekennzeichnete Felder sind Pflichtfelder.
  • 0207-050
  • upon request
  • the set contains the universal chemical hose
Description: The Pump Set B2 Battery is suitable for low viscosity, aqueous to slightly...more
Product information "Battery Pump Set - B2 Battery Niro"

Immersion depth: 500 mm (sealless)
Type of hose: universal chemical hose (for chemical liquids)
Note: The pump set is supplied without battery and charger.


The Pump Set B2 Battery is suitable for low viscosity, aqueous to slightly viscous media. The set is suitable for the removal of small pads such as Canister or hobbocks. The pump is flexible at all times and thus saves important resources.

  • Exchangeable, powerful battery with Li-Ions
  • Battery life 35 min at maximum speed
  • 1 battery charge empties approx. 12 x 200 litre containers

Features & Advantages

  • BLDC Motor with high efficiency up to 70%
  • infinitely variable
  • high battery life
  • automatic shutdown in case of overload
  • sophisticated quick release
Technische Produktdaten
Suitable media: Weichmacher, Kaltreiniger, Schmiermittel
Pump station material (material): Niro (Edelstahl)
Impeller (material): ETFE (ethylene-tetrafluorethylene copolymer)
Static seal (material): no seals in contact with the medium
Mechanical seal (material): no seals in contact with the medium
Bearing (material): ETFE / PTFE
Drive shaft (material): Edelstahl (1.4571)
Delivery rate (up to max. l/min)*: 80
Delivery rate with Nozzle (up to max. l/min)*: 45
Delivery head (up to max. mWS)*: 8
Fluid temperature (max °C): 90
density (up to kg/dm³): 1.6
Viscosity (up to mPas): 400
Conveyor wheel shape / drive type: Axial-flow rotor
Seal type: Sealless (SL)
Immersion length (mm): up to 500 mm
Immersion tube diameter (up to mm): 28
Thread (inch) outside: 1"
Schlauchlänge (mm): 1500
Type of drive: Battery
Output (W): 260
Voltage (V): 21,6
Capacity (Ah): 4

* The maximum flow rate is a value determined by means of a test bench and measured with water at a medium temperature of approx. 20 °C. The measurement is carried out at the pressure joint of the pump, without hose, nozzle or flow meter. The achievable flow rate in use is lower and depends on the individual application, the liquid properties and the configuration of the pump. The max. delivery head also depends on the pump design, motor and fluid. The viscosity values are determined with oil.

** Test assembly: Medium water / diesel, flow in preferred direction, settling section 0.2 m upstream and downstream of flow meter

Here yoll find all files for this article. mehr
Titel Beschreibung Dateiname Aktion
01 Drum pumps Pump tubes - B1 & B2 Battery Operating Manuals 0698-350_Pump_tube_B1_Battery_B2_Battery_de.pdf
08 Motors Battery Motors - B1 & B2 Operating Manuals 0698-301_Motor_B1_B2_Battery_en.pdf
09 Accessories Nozzles - All models Operating Manuals 0698-070_Nozzles_de_en.pdf
