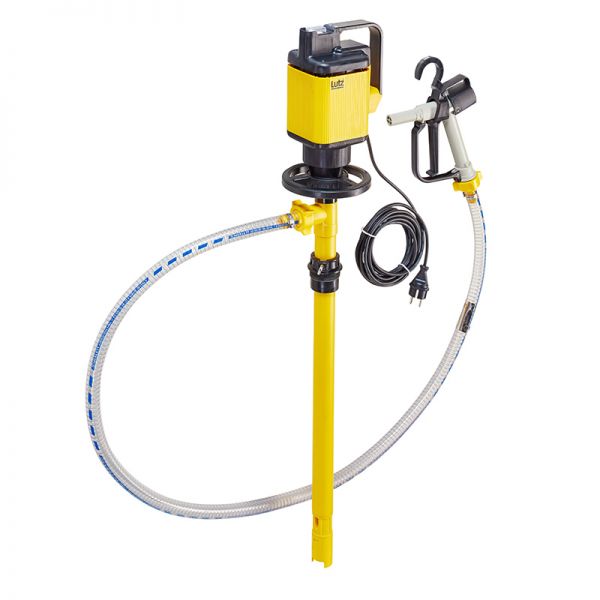

Pump Set - Acids
for acidic liquids
- Order number: 0205-131
- Maße (mm): upon request
- Info: not suitable for flammable liquids
Motor: MA II 3 - 460W, 230V (for a higher density of the medium)
Immersion depth: 1000 mm (sealless)
convient pour la vidange de fûts de 200l
à l"abri de la sécheresse
Description:
The Pump Set is suitable for corrosive, aqueous to slightly viscous media. Perfectly suited for the withdrawal or decanting of acids.
- Media examples: Hydrochloric acid, battery acid, iron-III-chloride, phosphoric acid, chromic acid and citric acid etc.
- Pump tube equipped with Lutz original hand wheel
- Suitable for filling or decanting oils such as rapeseed oil and vegetable oil
Features & Advantages
- Optionally with electric or compressed air drive
- No lubricants and therefore no contamination of the pumped medium by lubricants
- Optimized Drum emptying
- Universally resistant PTFE shaft bearing
- Maintenance without special tools
- Seal modules of the seal-less (DL) pump are interchangeable
| Suitable media: | Zitronensäure, Eisen-III-Chlorid, Chromsäure, Akkusäure, Phosphorsäure, Salzsäure |
| Pump station material (material): | PP (polypropylene) |
| Impeller (material): | PP (polypropylene) |
| Static seal (material): | no seals in contact with the medium |
| Mechanical seal (material): | no seals in contact with the medium |
| Bearing (material): | ETFE / PTFE |
| Drive shaft (material): | Hastelloy C (2.4610) |
| Delivery rate (up to max. l/min)*: | 78 |
| Delivery rate with Nozzle (up to max. l/min)*: | 45 |
| Delivery head (up to max. mWS)*: | 16 |
| Fluid temperature (max °C): | 50 |
| density (up to kg/dm³): | 1.6 |
| Viscosity (up to mPas): | 500 |
| Conveyor wheel shape / drive type: | Radial-flow impeller |
| Seal type: | Sealless (SL) |
| Immersion length (mm): | from 1000 mm |
| Immersion tube diameter (up to mm): | 41 |
| Thread (inch) outside: | 1 1/4" |
| Schlauchlänge (mm): | 2000 |
| Type of drive: | Electric |
| Output (W): | 460 |
| Voltage (V): | 230 |
| Frequency (Hz): | 50 |
| Protection type: | IP54 |
* The maximum flow rate is a value determined by means of a test bench and measured with water at a medium temperature of approx. 20 °C. The measurement is carried out at the pressure joint of the pump, without hose, nozzle or flow meter. The achievable flow rate in use is lower and depends on the individual application, the liquid properties and the configuration of the pump. The max. delivery head also depends on the pump design, motor and fluid. The viscosity values are determined with oil. ** Test assembly: Medium water / diesel, flow in preferred direction, settling section 0.2 m upstream and downstream of flow meter
