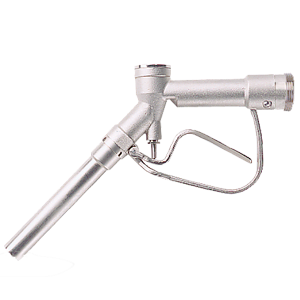

Zapfpistole Messing

Zapfpistole Messing

for solvents and highly flammable hydrocarbons

Preis anfragen

Mit * gekennzeichnete Felder sind Pflichtfelder.
  • 0372-502
  • on request
Description: For filling and transferring solvents and neutral liquids. The body and valve...more
Product information "Zapfpistole Messing"

Description:

For filling and transferring solvents and neutral liquids. The body and valve plug of the nozzle is made of brass and is equipped with a swivel coupling and a protective bracket.
The nozzle is sealed by means of a PTFE seal.

  • Connection: male thread G 1 1/4"

Features & Advantages

  • Safe filling or decanting of the respective liquid
  • Easy to operate
  • Rotary coupling ensures tightness at high pressure
  • For pumping in explosive environments
Technische Produktdaten
▼ WERKSTOFFE | MATERIAL | MATERIAAL ▼
Housing (material): Messing
Static seal (material): PTFE (Polytetrafluorethen)
▼ FÖRDERDATEN | OPERATING DATA | SPECIFICATIES ▼
Delivery rate (up to max. l/min)*: 80
Fluid temperature (max °C): 80
Operating pressure (max. bar): 4
Viscosity (up to mPas): 760
▼ PUMPWERK | PUMP TUBE | POMPWERK ▼
Thread (inch) outside: 1 1/4"
▼ EIGENSCHAFTEN | PROPERTIES | EIGENSCHAPPEN ▼
Explosion protection: Yes
Type: Zapfpistole Messing
Produktgruppe: Fasspumpen / Containerpumpen
Accessories group: Nozzles

* Die max. Fördermenge ist ein ermittelter Wert mittels Prüfstand und gemessen mit Wasser bei einer Mediumstemperatur von ca. 20° C. Die Messung erfolgt am Druckstutzen der Pumpe, ohne Schlauch, Zapfpistole oder Durchflussmesser. Die im Einsatz erzielbare Fördermenge ist niedriger und hängt von der individuellen Anwendung, den Medieneigenschaften sowie der Konfiguration der Pumpe ab. Die max. Förderhöhe ist ebenso abhängig von Pumpenausführung, Motor und Medium. Die Viskositätswerte werden mit Öl ermittelt.

** Prüfaufbau: Medium Wasser / Diesel, Durchfluss in Vorzugsrichtung, Beruhigungsstrecke 0,2 m vor und nach dem Durchflusszähler

Here yoll find all files for this article. mehr
Titel Beschreibung Dateiname Aktion
09 Accessories Nozzles - All models Operating Manuals 0698-070_Nozzles_de_en.pdf
