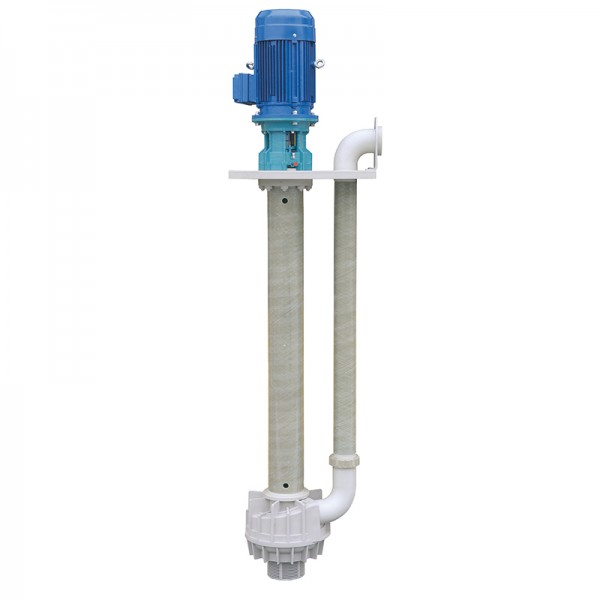

Centrifugal immersion pump B80 KGK G3

Centrifugal immersion pump B80 KGK G3

for installation depths up to 4000 mm

Preis anfragen

Mit * gekennzeichnete Felder sind Pflichtfelder.
  • 6090-003
  • upon request
  • is suitable for flow rates up to 270 m³/h
Description: The B80 KGK G3 series is a powerful and robust submersible centrifugal pump...more
Product information "Centrifugal immersion pump B80 KGK G3"

Further information on the KGK series such as pump types, materials etc. can be found at Inquiry


Description:

The B80 KGK G3 series is a powerful and robust submersible centrifugal pump with plain bearings, drive lantern mounted on anti-friction bearings and IEC standard motor.The B80 KGK G3 series is designed in single or two-stage versions with one or two impellers for high flow rates. Multistage pumps are used to increase the delivery pressure while maintaining compact hydraulic dimensions and are used in particular in processes with high delivery pressures at low flow rates. They are perfectly designed for industrial use in closed unpressurized tanks, basins or pits.

  • equipped with a suction strainer as standard
  • a suction pipe extension up to 2000 mm is possible
  • available in immersion depths from 500 - 4000 mm

Features & Advantages

  • Vibration and oscillation free operation
  • Efficient and space-saving design due to 1- and 2-stage pump hydraulics
  • Long service life and operational reliability
  • All components in contact with the medium are made of corrosion-resistant plastics
  • No screws in contact with the medium
  • External flushing to protect the plain bearings in the case of media containing solids
Technische Produktdaten
▼ FÖRDERDATEN | OPERATING DATA | SPECIFICATIES ▼
Fördermenge (bis max. m³/h)*: 270
Delivery head (up to max. mWS)*: 85
Fluid temperature (max °C): 90
density (up to kg/dm³): 2.0
Viscosity (up to mPas): 75
▼ PUMPWERK | PUMP TUBE | POMPWERK ▼
Immersion length (mm): 4000
▼ EIGENSCHAFTEN | PROPERTIES | EIGENSCHAPPEN ▼
Version: Vertical
Type: B80 KGK G3

* The maximum flow rate is a value determined by means of a test bench and measured with water at a medium temperature of approx. 20 °C. The measurement is carried out at the pressure joint of the pump, without hose, nozzle or flow meter. The achievable flow rate in use is lower and depends on the individual application, the liquid properties and the configuration of the pump. The max. delivery head also depends on the pump design, motor and fluid. The viscosity values are determined with oil.

** Test assembly: Medium water / diesel, flow in preferred direction, settling section 0.2 m upstream and downstream of flow meter
