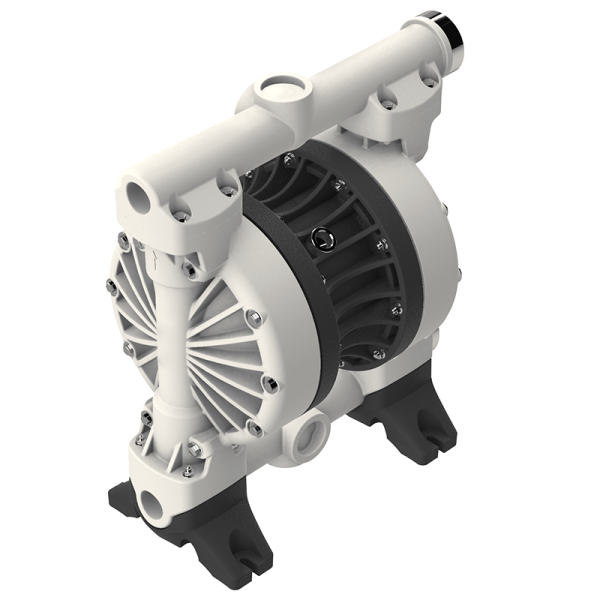

Double diaphragm pump AODD model 2” non-metallic

Double diaphragm pump AODD model 2” non-metallic

for plant feedings and large-scale industry

Order number: 5250-200
Maße (mm): A 563 | B 663 | C 345
Info: is not suitable for the Ex-area

Description: The double diaphragm pump is suitable for large scale industry and plant...more

Close menu

Product information "Double diaphragm pump AODD model 2” non-metallic"

Material: Polypropylene glass fibre reinforced (PP)
Material of diaphragm / check balls / seals: TPC-ET + TFM (PTFE) / PTFE / PTFE
Centre block material: Aluminium

Description of material: EPDM = ethylene propylene diene rubber, FPM = fluorine rubber,
NBR = acrylonitrile butadiene rubber, PP = polypropylene, PTFE = polytetrafluoroethylene,
TPC-ET + TFM (PTFE) = thermoplastic polyester elastomer + modified polytetrafluoroethylene,
TPV (EPDM-PP) = EPDM/PP compound

Description:

The double diaphragm pump is suitable for large scale industry and plant feeding as well as for large flow rates and higher viscosities.

typical applications: Filter press, tank cleaning system, pigment dyes and resins
integrated muffler up to model size AODD 1"
highly resistant TFM (PTFE) diaphragms (modified PTFE)

Features & Benefits

high hydraulic performance
maintenance-optimised design and simple installation
self-priming (even when dry)
reinforced elastomers and thermoplastic diaphragms
absolutely oil-free
non-stalling operation

Technische Produktdaten

Double diaphragm pumps (material):

non - metallic

Housing (material):

Polypropylene glass fibre reinforced (PP)

Centre block (material):

Aluminium

Diaphragms (material):

TPC-ET + TFM (PTFE) (Thermoplastisches Polyesterelastomer + Modifiziertes Polytetrafluorethylen)

Valve ball (material):

PTFE (Polytetrafluorethylen)

Seals (material):

PTFE (polyvinylidene fluoride)

Valve seat (material):

PP (polypropylene)

Delivery rate (up to max. l/min)*:

715

Delivery head (up to max. mWS)*:

Solids (max. ø mm):

Fluid temperature (max °C):

Viscosity (up to mPas):

30000

Suction head dry (up to max. mwc*):

4,5

Air pressure (max. bar):

Air pressure start-up (min. bar):

Sound pressure level dB(A):

Displacement per chamber (in cm³):

1910

Displacement per chamber (in cm³):

3820

Size:

Air inlet (inch) inside:

3/4"

Pressure joint (inch) inside:

Suction joint (inch) inside:

Explosion protection:

Connection:

Gewinde

Type:

DMP 2" PPT PP/PTFE

* Die max. Fördermenge ist ein ermittelter Wert mittels Prüfstand und gemessen mit Wasser bei einer Mediumstemperatur von ca. 20° C. Die Messung erfolgt am Druckstutzen der Pumpe, ohne Schlauch, Zapfpistole oder Durchflussmesser. Die im Einsatz erzielbare Fördermenge ist niedriger und hängt von der individuellen Anwendung, den Medieneigenschaften sowie der Konfiguration der Pumpe ab. Die max. Förderhöhe ist ebenso abhängig von Pumpenausführung, Motor und Medium. Die Viskositätswerte werden mit Öl ermittelt.

** Prüfaufbau: Medium Wasser / Diesel, Durchfluss in Vorzugsrichtung, Beruhigungsstrecke 0,2 m vor und nach dem Durchflusszähler
