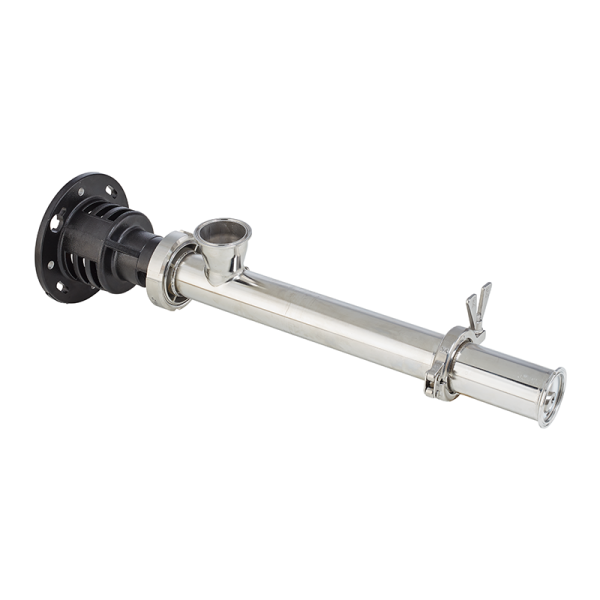

Horizontal Eccentric screw pump tube B70H Industry
for neutral, aggressive and easily inflammable media
- Order number: 0176-401
- Maße (mm): upon request
- Info: is also available in the Pure version on request
Delivery rate: 25 l/min.
Drive shaft: Universal joint shaft (GW)
Type of seal : Mechanical seal (GLRD)
Note: With Ex-approval and a Tri-Clamp connection on the discharge connection
Description:
The B70H is a modification of our B70V and is designed for horizontal use on a transport trolley. It can be used in situations where the B70V comes up against spatial or handling limits and thus rounds off our Eccentric screw pumps range with a mobile variant. The pump is suitable for pumping aqueous to highly viscous Newtonian and non- Newtonian media as well as media containing solids and shear-sensitive media. It is also used in explosion-proof zones for aggressive and highly flammable liquids with high delivery pressure.
- Simple upgrade of the stator from 25.1 to 75.1 possible
- Horizontal version
- Optional stainless steel transport trolley with normal or conductive rollers.
Features & Advantages
- Conveying possible at low room height
- No physical strain due to heavy lifting
- Mobility is given by the transport trolley
- Easy size change possible
- Easy handling of pumps with large weights
- Approved according to ATEX directive 2014/34/EU, category 1/2
| Pump station material (material): | Edelstahl (1.4571/1.4404) |
| Static seal (material): | FPM (fluororubber) |
| Mechanical seal (material): | Kohle, CrMO-Guss, FPM |
| Drive shaft (material): | Edelstahl (1.4571) |
| Stator (Werkstoff): | PTFE (Polytetrafluorethylen) |
| Rotor (Werkstoff): | Edelstahl (1.4571) |
| Delivery rate (up to max. l/min)*: | 25 |
| Delivery head (up to max. bar)*: | 8 |
| Fluid temperature (max °C): | 140 |
| Viscosity (up to mPas): | 100000 |
| Conveyor wheel shape / drive type: | Gelenkwelle (hochviskose Medien) |
| Seal type: | Mechanical seal (MS) |
| Immersion length (mm): | 400 |
| Statorgröße: | 25.1 |
| Druckstutzen (DN): | 50 |
| Explosion protection: | Yes |
| Type of drive: | Three phase |
| Certification: | ATEX Richtlinie (ATEX Richtlinie 2014/34/EU) |
| Type: | B70H |
* Die max. Fördermenge ist ein ermittelter Wert mittels Prüfstand und gemessen mit Wasser bei einer Mediumstemperatur von ca. 20° C. Die Messung erfolgt am Druckstutzen der Pumpe, ohne Schlauch, Zapfpistole oder Durchflussmesser. Die im Einsatz erzielbare Fördermenge ist niedriger und hängt von der individuellen Anwendung, den Medieneigenschaften sowie der Konfiguration der Pumpe ab. Die max. Förderhöhe ist ebenso abhängig von Pumpenausführung, Motor und Medium. Die Viskositätswerte werden mit Öl ermittelt. ** Prüfaufbau: Medium Wasser / Diesel, Durchfluss in Vorzugsrichtung, Beruhigungsstrecke 0,2 m vor und nach dem Durchflusszähler
