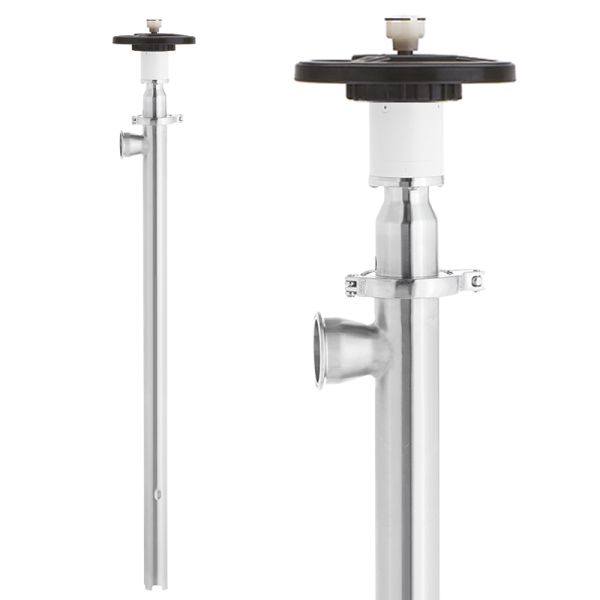

Eccentric screw pump tube B70V SanitaryPlus, Ex

with reduction gear for electric motors



Preis anfragen

Mit * gekennzeichnete Felder sind Pflichtfelder.
  • 0174-094
  • op verzoek
  • The stator of the pumping unit is made of PTFE (polytetrafluoroethylene)
Description: The B70V SanitaryPlus food pump is a powerful positive displacement pump for...more
Product information "Eccentric screw pump tube B70V SanitaryPlus, Ex"

Delivery rate: 12 l/min.
Seals: FPM (fluorocarbon rubber)
Note: The connection to the discharge port of the pumping station is made with a Tri-Clamp connection

Leveringssnelheid: 12 l/min. (explosieveilig)


The B70V SanitaryPlus food pump is a powerful positive displacement pump for heavy-sensitive, viscous and viscous media up to the limits of flowability. It pumps liquid foodstuffs, active pharmaceutical ingredients and cosmetic products from a wide variety of containers and delivery packages. The pump meets the requirements of hygienic design and is certified according to the "3-A Sanitary Standards".

  • also available in special immersion depths
  • Pump tube equipped with Lutz Original handwheel
  • Examples of media: liquid foodstuffs and semi-luxury foods, active pharmaceutical ingredients and cosmetic products

Features & Benefits

  • Thread-free, manually releasable quick connections in the area in contact with the medium
  • Quick and easy disassembly
  • Simple and fast cleaning
  • Gentle, low-pulsation product conveying
  • Certified and approved according to the current "3-A Sanitary Standards for Centrifugal and Positive Rotary Pumps Number 02-"
Technische Produktdaten
Pump station material (material): Edelstahl (1.4404)
Static seal (material): FPM (fluororubber)
Mechanical seal (material): SIC, Kohle, EPDM
Drive shaft (material): Edelstahl (1.4571)
Stator (Werkstoff): EPDM (Ethylen-Propylen-Dien-Kautschuk)
Rotor (Werkstoff): Edelstahl (1.4571)
Delivery rate (up to max. l/min)*: 12
Delivery head (up to max. bar)*: 6
Fluid temperature (max °C): 100
Viscosity (up to mPas): 100000
Seal type: Mechanical seal (MS)
Immersion length (mm): 1100
Immersion tube diameter (up to mm): 54
Statorgröße: 12.1
Druckstutzen (DN): 50
Explosion protection: Yes
Connection: Tri-Clamp
Type of drive: Electric, Compressed air
Certification: ATEX Richtlinie (ATEX Richtlinie 2014/34/EU), U.S. Pharmacopeial Convention, FDA-compliant, 3-A Sanitary Standard, Verordnung (EG) 1935/2004
Type: B70V-H-SR Sanitary Plus

* The maximum flow rate is a value determined by means of a test bench and measured with water at a medium temperature of approx. 20 °C. The measurement is carried out at the pressure joint of the pump, without hose, nozzle or flow meter. The achievable flow rate in use is lower and depends on the individual application, the liquid properties and the configuration of the pump. The max. delivery head also depends on the pump design, motor and fluid. The viscosity values are determined with oil.

** Test assembly: Medium water / diesel, flow in preferred direction, settling section 0.2 m upstream and downstream of flow meter
