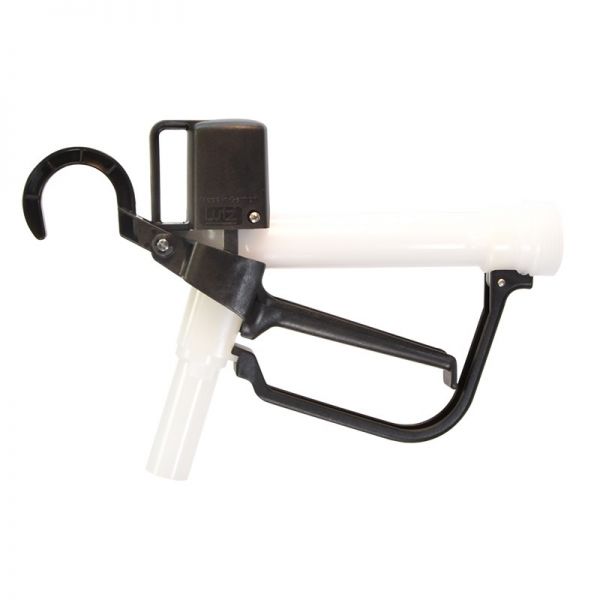

Nozzle PVDF

Nozzle PVDF

for concentrated acids and alkalis

Seals:

Version:

Preis anfragen
Please enter these characters in the following text field.

Mit * gekennzeichnete Felder sind Pflichtfelder.
  • 0204-390
  • upon request
Description: For filling and transferring for concentrated acids and alkalis. The...more
Product information "Nozzle PVDF"

Dichtung: FPM (Fluorkautschuk)
Ausführung: ohne Taster


Description:

For filling and transferring for concentrated acids and alkalis. The body and the valve plug of the Nozzle are made of polyvinylidene fluoride (PVDF) and are equipped with a protective bracket and two outlet nozzles each 23mm and Ø12mm)
. The dispensing nozzle is sealed by means of an FPM seal.

  • on request the additional price seals FFPM or FEP / FPM are available
  • Connection: external thread G 1 1/4"

Features & Advantages

  • Easy adjustment of the flow rate
  • Easy to operate
  • Safe filling or decanting of the respective liquid
Technische Produktdaten
▼ WERKSTOFFE | MATERIAL | MATERIAAL ▼
Housing (material): Polyvinylidene fluoride carbon fibre reinforced (PVDF)
Static seal (material): FPM (fluororubber)
▼ FÖRDERDATEN | OPERATING DATA | SPECIFICATIES ▼
Delivery rate (up to max. l/min)*: 50
Fluid temperature (max °C): 80
Operating pressure (max. bar): 3
Viscosity (up to mPas): 760
▼ PUMPWERK | PUMP TUBE | POMPWERK ▼
Thread (inch) outside: 1 1/4"
▼ EIGENSCHAFTEN | PROPERTIES | EIGENSCHAPPEN ▼
Type: Zapfpistole PVDF
Produktgruppe: Fasspumpen / Containerpumpen
Accessories group: Nozzles

* The maximum flow rate is a value determined by means of a test bench and measured with water at a medium temperature of approx. 20 °C. The measurement is carried out at the pressure joint of the pump, without hose, nozzle or flow meter. The achievable flow rate in use is lower and depends on the individual application, the liquid properties and the configuration of the pump. The max. delivery head also depends on the pump design, motor and fluid. The viscosity values are determined with oil.

** Test assembly: Medium water / diesel, flow in preferred direction, settling section 0.2 m upstream and downstream of flow meter
