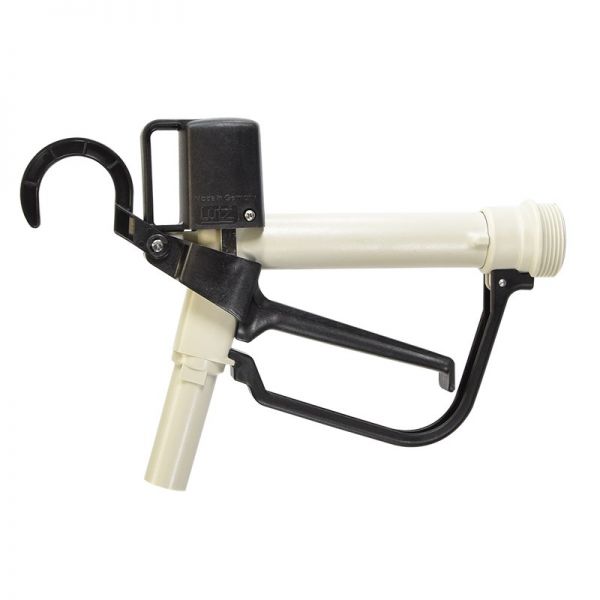

Nozzle PP

Nozzle PP

for acids and alkalis

Seals:

Version:

Preis anfragen
Please enter these characters in the following text field.

Mit * gekennzeichnete Felder sind Pflichtfelder.
  • 0204-380
  • op verzoek
Description: For filling and transferring neutral and aggressive liquids. The housing...more
Product information "Nozzle PP"

Seals: FPM (fluorocarbon rubber)
Version: without pushbutton


Afdichting FPM

Description:

For filling and transferring neutral and aggressive liquids. The housing and the valve plug of the Nozzle are made of polypropylene (PP) and are equipped with a protective bracket and two outlet nozzles each ( Ø 23mm and Ø12mm) .

  • Connection: external thread G 1 1/4"
  • optional available with a push-button for direct operation of the relay module (no communication module required)

Features & advantages

  • Easy adjustment of the volume flow
  • Safe filling or decanting of the respective liquid
  • Easy to operate
Technische Produktdaten
▼ WERKSTOFFE | MATERIAL | MATERIAAL ▼
Housing (material): PP (Polypropylen)
Static seal (material): FPM (fluororubber), FEP / FPM, EPDM
▼ FÖRDERDATEN | OPERATING DATA | SPECIFICATIES ▼
Delivery rate (up to max. l/min)*: 50
Fluid temperature (max °C): 50
Operating pressure (max. bar): 3
Viscosity (up to mPas): 760
▼ PUMPWERK | PUMP TUBE | POMPWERK ▼
Thread (inch) outside: 1 1/4"
▼ EIGENSCHAFTEN | PROPERTIES | EIGENSCHAPPEN ▼
Type: Zapfpistole PP
Produktgruppe: Fasspumpen / Containerpumpen
Accessories group: Nozzles

* The maximum flow rate is a value determined by means of a test bench and measured with water at a medium temperature of approx. 20 °C. The measurement is carried out at the pressure joint of the pump, without hose, nozzle or flow meter. The achievable flow rate in use is lower and depends on the individual application, the liquid properties and the configuration of the pump. The max. delivery head also depends on the pump design, motor and fluid. The viscosity values are determined with oil.

** Test assembly: Medium water / diesel, flow in preferred direction, settling section 0.2 m upstream and downstream of flow meter
