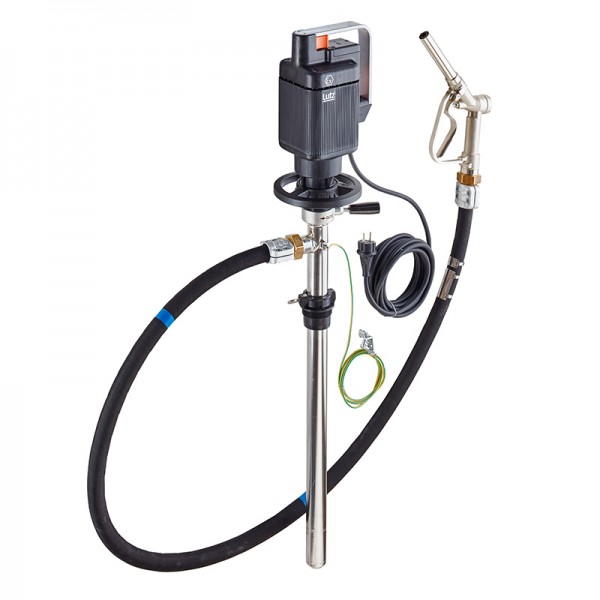

Pump Set for residual emptying - solvent

for highly flammable hydrocarbons

Immersion depth:

Motor:

Preis anfragen

Mit * gekennzeichnete Felder sind Pflichtfelder.
  • 0205-501
  • upon request
  • is suitable for the Ex - area
Description: The Pump Set is suitable for low viscosity, flammable and combustible...more
Product information "Pump Set for residual emptying - solvent"

Motor: ME II 3 - 460W, 230V
Immersion depth: 1000 mm (sealless)


with motor ME II 3 (Ex) with undervoltage release, immersion depth: 1000 mm (with mechanical seal)
Suitable for 200l drum emptying Undervoltage release
prevents unexpected start-up of the pump after power failure
.

Recommended when pumping hazardous liquids.


Description:

The Pump Set is suitable for low viscosity, flammable and combustible hydrocarbons. Perfectly suited for the removal or decanting of solvents.

  • Media examples: Ethanol, gasoline, butanol, isopropanol, kerosene, methanol and petroleum.etc.
  • Pump tube equipped with Lutz original hand wheel
  • Suitable for Drum emptying alternative fuels, oils, flammable liquids

Features & Advantages

  • Optionally with electric or compressed air drive
  • No lubricants and therefore no contamination of the pumped medium by lubricants
  • Optimized Drum emptying with remaining quantity of approx. 0.1 litres
  • No leakage in case of inclined position or repositioning of the pumping unit
  • Maximum product utilisation with reduced drum cleaning and disposal costs
  • Approved according to ATEX directive 2014/34/EU, category 1/2
Technische Produktdaten
▼ MEDIUM ▼
Suitable media: Petroleum, Methanol, Kerosin, Isopropanol, Butanol, Ethanol
▼ WERKSTOFFE | MATERIAL | MATERIAAL ▼
Pump station material (material): Niro (Edelstahl)
Impeller (material): ETFE (ethylene-tetrafluorethylene copolymer)
Mechanical seal (material): Kohle, Keramik, PTFE, HC-4 (2.4610), Edelstahl (1.4571)
Static seal (material): FEP ummantelt
Drive shaft (material): Edelstahl (1.4571)
Bearing (material): Edelkohle
▼ FÖRDERDATEN | OPERATING DATA | SPECIFICATIES ▼
Delivery rate (up to max. l/min)*: 67, 77
Delivery rate with Nozzle (up to max. l/min)*: 40, 45
Delivery head (up to max. mWS)*: 14, 28
Fluid temperature (max °C): 100
density (up to kg/dm³): 1.6, 2.8
Viscosity (up to mPas): 500 (e.g. hydraulic oil)
▼ PUMPWERK | PUMP TUBE | POMPWERK ▼
Immersion length (mm): from 1000 mm, from 1500 mm
Immersion tube diameter (up to mm): 41
Conveyor wheel shape / drive type: Radial-flow impeller
Seal type: Mechanical seal (MS)
Thread (inch) outside: 1 1/4"
▼ EIGENSCHAFTEN | PROPERTIES | EIGENSCHAPPEN ▼
Type of drive: Electric, Compressed air
Output (W): 460, 1000
Voltage (V): 230
Operating pressure (max. bar): lower than 6 bar
Frequency (Hz): 50
Protection type: IP54
Version: Unterspannungsauslöser
Explosion protection: explosion-proof
Certification: Atex approval
▼ SCHLAUCH | HOSE | SLANG ▼
Schlauchlänge (mm): 2000

* Die max. Fördermenge ist ein ermittelter Wert mittels Prüfstand und gemessen mit Wasser bei einer Mediumstemperatur von ca. 20° C. Die Messung erfolgt am Druckstutzen der Pumpe, ohne Schlauch, Zapfpistole oder Durchflussmesser. Die im Einsatz erzielbare Fördermenge ist niedriger und hängt von der individuellen Anwendung, den Medieneigenschaften sowie der Konfiguration der Pumpe ab. Die max. Förderhöhe ist ebenso abhängig von Pumpenausführung, Motor und Medium. Die Viskositätswerte werden mit Öl ermittelt.

** Prüfaufbau: Medium Wasser / Diesel, Durchfluss in Vorzugsrichtung, Beruhigungsstrecke 0,2 m vor und nach dem Durchflusszähler
