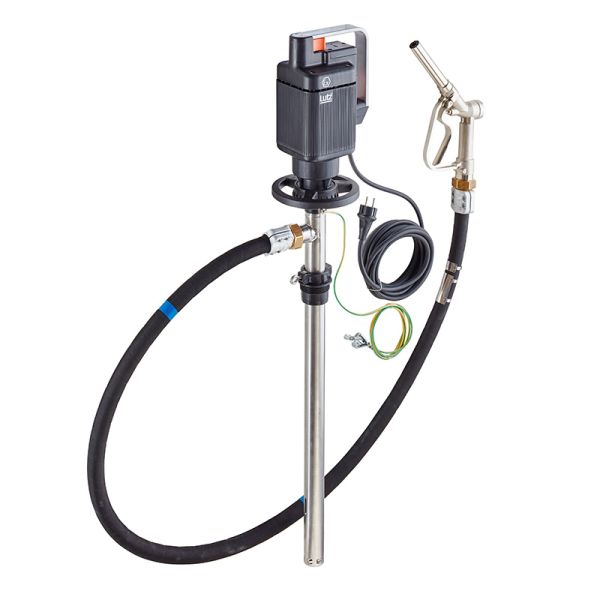

Pump Set - Solvent

for highly flammable hydrocarbons

Immersion depth:

Motor:

Preis anfragen

Mit * gekennzeichnete Felder sind Pflichtfelder.
  • 0205-401
  • upon request
  • is suitable for the Ex - area
Description: The Pump Set is suitable for low viscosity, flammable and combustible...more
Product information "Pump Set - Solvent"

Motor: ME II 3 - 460W, 230V
Immersion depth: 1000 mm (sealless)


with motor ME II 3 (Ex) with undervoltage release, immersion depth: 1000 mm (sealless)
Suitable for 200l drum emptying Undervoltage release
prevents unexpected start-up of the pump after power failure
. Recommended
when pumping hazardous liquids
.

conditionally safe to run dry


Description:

The Pump Set is suitable for low viscosity, flammable and combustible hydrocarbons. Perfectly suited for the removal or decanting of solvents.

  • Media examples: Ethanol, gasoline, butanol, isopropanol, kerosene, methanol and petroleum.etc.
  • Pump tube equipped with Lutz original hand wheel
  • Suitable for filling or transferring alternative fuels, oils, flammable liquids

Features & Advantages

  • Optionally with electric or compressed air drive
  • No lubricants and therefore no contamination of the pumped medium by lubricants
  • Highly resistant noble carbon shaft bearings
  • Maintenance without special tools
  • Seal modules of the seal-less (DL) pump can be replaced
  • Approved according to ATEX directive 2014/34/EU, category 1/2
Technische Produktdaten
▼ MEDIUM ▼
Suitable media: Petroleum, Methanol, Kerosin, Isopropanol, Butanol, Benzin, Ethanol
▼ WERKSTOFFE | MATERIAL | MATERIAAL ▼
Pump station material (material): Niro (Edelstahl)
Impeller (material): ETFE (ethylene-tetrafluorethylene copolymer)
Static seal (material): no seals in contact with the medium
Mechanical seal (material): no seals in contact with the medium
Bearing (material): Edelkohle
▼ FÖRDERDATEN | OPERATING DATA | SPECIFICATIES ▼
Delivery rate (up to max. l/min)*: 95
Delivery rate with Nozzle (up to max. l/min)*: 60
Delivery head (up to max. mWS)*: 14
Fluid temperature (max °C): 100
density (up to kg/dm³): 1.6
Operating pressure (max. bar): lower than 6 bar
Viscosity (up to mPas): 350
▼ PUMPWERK | PUMP TUBE | POMPWERK ▼
Conveyor wheel shape / drive type: Radial-flow impeller
Seal type: Sealless (SL)
Immersion length (mm): from 1000 mm
Immersion tube diameter (up to mm): 41
Thread (inch) outside: 1 1/4"
▼ EIGENSCHAFTEN | PROPERTIES | EIGENSCHAPPEN ▼
Explosion protection: Yes
Type of drive: Electric
Output (W): 460
Voltage (V): 230
Frequency (Hz): 50
Protection type: IP54
Version: Unterspannungsauslöser
▼ SCHLAUCH | HOSE | SLANG ▼
Schlauchlänge (mm): 2000

* Die max. Fördermenge ist ein ermittelter Wert mittels Prüfstand und gemessen mit Wasser bei einer Mediumstemperatur von ca. 20° C. Die Messung erfolgt am Druckstutzen der Pumpe, ohne Schlauch, Zapfpistole oder Durchflussmesser. Die im Einsatz erzielbare Fördermenge ist niedriger und hängt von der individuellen Anwendung, den Medieneigenschaften sowie der Konfiguration der Pumpe ab. Die max. Förderhöhe ist ebenso abhängig von Pumpenausführung, Motor und Medium. Die Viskositätswerte werden mit Öl ermittelt.

** Prüfaufbau: Medium Wasser / Diesel, Durchfluss in Vorzugsrichtung, Beruhigungsstrecke 0,2 m vor und nach dem Durchflusszähler

Here yoll find all files for this article. mehr
Titel Beschreibung Dateiname Aktion
01 Drum pumps Pump tubes - All models Operating Manuals 0698-030_Pump_tubes_de_en.pdf
08 Motors Electric motors - Serie ME II Operating Manuals 0698-020_Motor_ME_II_de_en.pdf
09 Accessories Nozzles - All models Operating Manuals 0698-070_Nozzles_de_en.pdf
